Geetest Image Captcha

Overview

Geetest is a popular captcha system in China and Asian countries, using interactive challenges such as puzzle dragging and image recognition. We provide services to solve all types of Geetest Image (Geetest v3, Geetest v4, ...) on browsers, simulators, and phone farms.

🧩

This documentation guides you through handling Geetest Captcha which requires users to identify and click on objects in sequence on the background image. For drag-type captcha, please follow the instructions for Tiktok Captcha drag type.

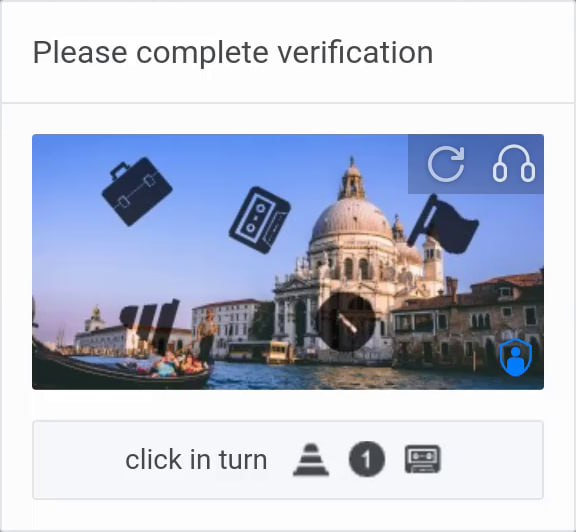

Geetest Captcha

1. Create Task

Image Submission Format

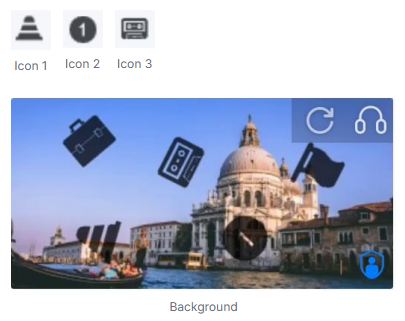

Separate icon images and background images as shown below Click Image Sample

Request

POST https://api.achicaptcha.com/createTask

Parameters

Parameter Name	Data Type	Required?	Description
`clientKey`	string	yes	Api key
`task.type`	string	yes	GeetestImageCaptchaTask
`task.image`	string	yes	List of base64 images following the principle: icon_1\|icon_2\|...\|icon_n\|background (Base64 strings separated by \|)
`task.subType`	int	yes	Captcha type: 7: Select objects in order

Request Example

POST /createTask HTTP/1.1
Host: api.achicaptcha.com
Content-Type: application/json

{
  "clientKey": "YOUR_API_KEY",
  "task": {
    "type": "GeetestImageCaptchaTask",
    "image": "/9j/4AAQSkZJRgABAQEASABIAAD/2wBDAAMCAgMCAgMDAwMEAwMEBQgFBQQEBQoHBwYIDAoMDAsKCwsNDhIQDQ4RDgsLEBYQERMUFRUVDA8XGBYUGBIUFRT...|/9j/4AAQSkZJRgABAQEASABIAAD/2wBDAAMCAgMCAgMDAwMEAwMEBQgFBQQEBQoHBwYIDAoMDAsKCwsNDhIQDQ4RDgsLEBYQERMUFRUVDA8XGBYUGBIUFRT...|/9j/4AAQSkZJRgABAQEASABIAAD/2wBDAAMCAgMCAgMDAwMEAwMEBQgFBQQEBQoHBwYIDAoMDAsKCwsNDhIQDQ4RDgsLEBYQERMUFRUVDA8XGBYUGBIUFRT...",
    "subType": 7
  }
}

Response

When successful, server returns errorId = 0 and taskId

{
  "errorId": 0,
  "taskId": "f2fc70d6-c76b-4fba-9480-205ac1fe9fb9"
}

2. Get Result

Request

POST https://api.achicaptcha.com/getTaskResult

Parameters

Parameter Name	Data Type	Required?	Description
`clientKey`	string	yes	Api key
`taskId`	string	yes	TaskId obtained from (1)

Request Example

POST /getTaskResult HTTP/1.1
Host: api.achicaptcha.com
Content-Type: application/json

{
  "clientKey": "YOUR_API_KEY",
  "taskId": "f2fc70d6-c76b-4fba-9480-205ac1fe9fb9"
}

Response

{
  "errorId": 0,
  "status": "ready",
  "solution": "x1,y1,x2,y2,x3,y3"
}

Status Explanation

errorId = 0 and status = ready: Successfully solved, read result in solution
errorId = 1 and status = processing: Solving captcha, wait 1-2 seconds and try again
errorId other than 0 and 1: System error, returns error code and description

Result Meaning

solution: Returns coordinates to click on captcha, format x1,y1,x2,y2,x3,y3,...
- Each pair (x, y) represents pixel coordinates to click on the background image
- Click order corresponds to the order of displayed icons

Integration Examples

import requests
import time

def solve_geetest_image(base64_images, sub_type=7, api_key='YOUR_API_KEY'):
    # base64_images: "icon1|icon2|icon3|background" - base64 string separated by |

    # Step 1: Create task
    create_task_url = 'https://api.achicaptcha.com/createTask'
    create_task_payload = {
        'clientKey': api_key,
        'task': {
            'type': 'GeetestImageCaptchaTask',
            'image': base64_images,
            'subType': sub_type
        }
    }

    response = requests.post(create_task_url, json=create_task_payload)
    result = response.json()

    if result['errorId'] != 0:
        raise Exception(result['errorDescription'])

    task_id = result['taskId']

    # Step 2: Get result
    get_result_url = 'https://api.achicaptcha.com/getTaskResult'

    while True:
        time.sleep(2)  # Wait 2 seconds

        get_result_payload = {
            'clientKey': api_key,
            'taskId': task_id
        }

        response = requests.post(get_result_url, json=get_result_payload)
        result = response.json()

        if result['errorId'] not in [0, 1]:
            raise Exception(result['errorDescription'])

        if result['status'] == 'ready':
            return result['solution']  # "x1,y1,x2,y2,x3,y3"

        # If status == 'processing', continue loop

# Usage
# Assume you have base64 images
icon1_base64 = '/9j/4AAQSkZJRgABAQEASABIAAD...'
icon2_base64 = '/9j/4AAQSkZJRgABAQEASABIAAD...'
icon3_base64 = '/9j/4AAQSkZJRgABAQEASABIAAD...'
background_base64 = '/9j/4AAQSkZJRgABAQEASABIAAD...'

base64_images = f'{icon1_base64}|{icon2_base64}|{icon3_base64}|{background_base64}'
solution = solve_geetest_image(base64_images, 7, 'YOUR_API_KEY')
print('Geetest coordinates:', solution)  # "x1,y1,x2,y2,x3,y3"

# Parse coordinates and use
coords = [int(c) for c in solution.split(',')]
for i in range(0, len(coords), 2):
    x, y = coords[i], coords[i + 1]
    print(f'Click at ({x}, {y})')
    # Perform click at coordinates (x, y)

Common Error Codes

Error Code	Description	Notes
0	success	Success
1	processing	Processing
2	missing required fields	Missing required fields, check parameters again
3	task not supported	Task type not supported
4	task creation failed	Task creation failed
5	client key does not exist	API key does not exist, check API key again
6	insufficient account balance	Insufficient account balance, add more credits
7	task failed, please create a new task	Task failed, please create a new task
8	task ID does not exist	Task ID does not exist

Best Practices

For best results when using Achicaptcha API for Geetest Image, follow these principles:

1. Prepare Images in Correct Format

All images must be encoded to base64
Image order: icon_1|icon_2|...|icon_n|background
Base64 images are separated by | character
Ensure background image is the last in the string

2. Use Results Correctly

Result returned is a coordinate string: x1,y1,x2,y2,x3,y3,...
Each pair (x, y) is pixel coordinates on the background image
Click order corresponds to the order of displayed icons
Click precisely at coordinates to complete captcha

3. Polling Interval

Wait at least 1-2 seconds between result checks
Don't spam API with too many consecutive requests
Set timeout to avoid infinite loops (recommended 60 seconds)

4. Error Handling

Check errorId = 1 for processing status
Retry for temporary errors (errorId = 6, 7)
Create new task if current task fails
Limit maximum retry attempts

5. API Key Security

Don't hardcode API key in code
Use environment variables
Don't expose API key on client-side
Make API calls from backend/server
